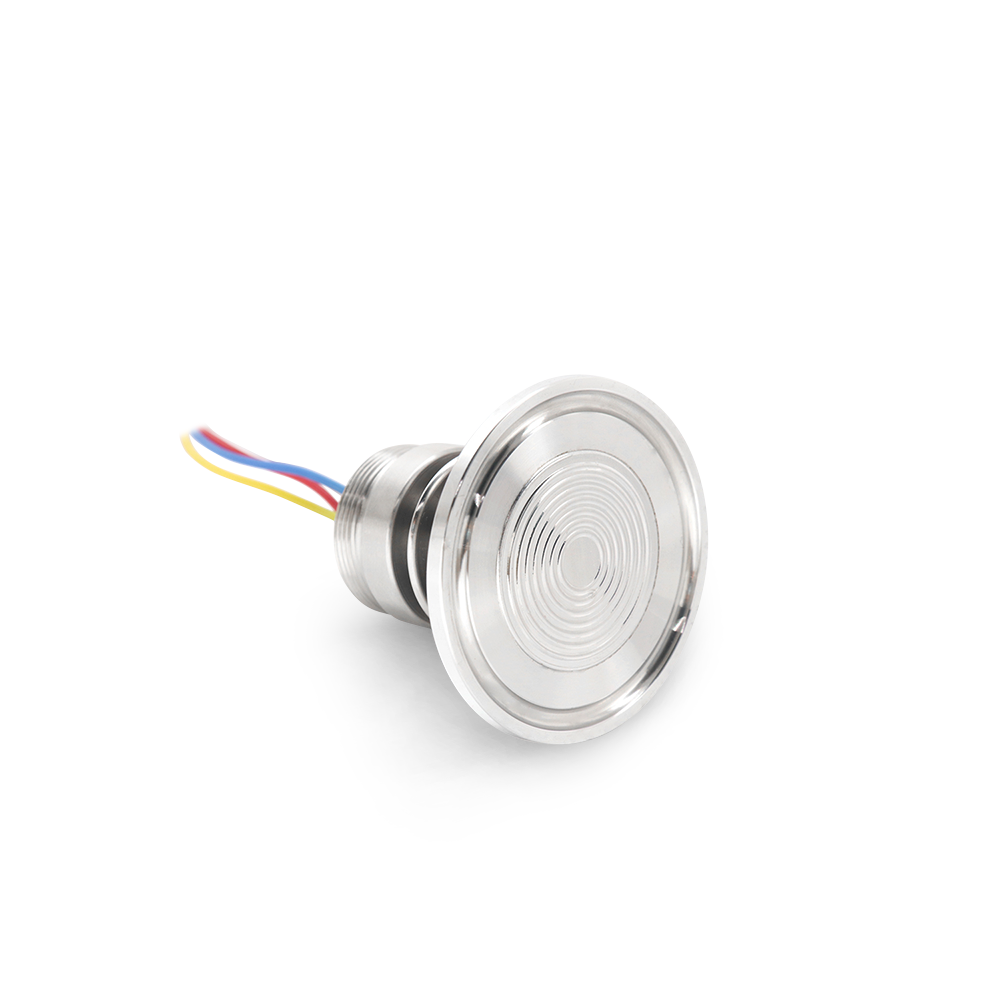

Piezoresistive Silicon Pressure Sensor Φ19mm PC10P

Product overview

PC10P piezoresistive silicon pressure sensor is the core component for the manufacture of pressure sensors and pressure transmitters. As high-performance pressure sensitive component, PC10P can be easily amplified and assembled into the pressure transmitters with standard signal output.

PC10P packages diffused silicon pressure sensitive die to 316L stainless steel housing. External pressure is transmitted to pressure sensitive die through stainless steel diaphragm and internally sealed silicon oil. Pressure sensitive die does not directly contact with measured medium, forming all solid structure of pressure measurement. So the product can be applied to a variety of occasions, including harsh corrosive medium environment.

PC10P uses O-ring for pressure seal, which is easy to install.

The company can also undertake special customization based on the needs of users, such as pressure sensors of all welded structure, wide temperature compensation, high reliability, anti-shock and anti-vibration sensors, especially for national defense weapons and equipment.

Features

■With constant current and constant voltage excitation options

■ Imported highly reliable pressure die

■ Wide temperature compensation

■ Normalized output available

■ Compensation board filled with glue for protection against moisture

■ Φ19mm standard OEM

■ All 316L material

■ High performance, all solid, high reliability

■ 18 months warranty period

Applications

■ Process control systems

■ Pressure calibration instruments

■ Refrigeration equipment and HVAC control

■ Hydraulic systems and valves

■ Level measurement

■ Biomedical instruments

■ Ships and navigation

■ Aircraft and avionics systems

■ Weaponry

Inquire Now Download

Product Parameters

Electrical performance parameters
Pressure range	-100kPa～0～10kPa…60MPa
Pressure reference	Gauge pressure, Absolute pressure, Sealed gauge pressure
Excitation	1.5mA recommended for constant current 10V recommended for constant voltage
Input impedance	Constant current: 2kΩ～5kΩ Constant voltage: 3kΩ～18kΩ
Electrical connection	Gold-plated KOVAR pin or silicon soft wire
Compensation temp.	Constant current: 0℃～60℃(≤70kPa), -10℃～70℃(other ranges)
Operating temp.	-40℃～125℃
Storage temp.	-40℃～125℃
Insulation resistance	≥200MΩ/250VDC
Response time	≤1ms (up to 90%FS)
Measured medium	All the liquids and gases compatible with 316L.
Mechanical vibration	20g (20～5000Hz)
Shock	100g (10ms)
Service life	1×10⁶(cycles)
Structural performance parameters
Diaphragm material	316L
Housing material	316L
Oil filling	Silicon oil
Sealing ring	NBR or fluorine rubber

Basic parameters
Item	Condition	Min	Nominal	Max	Unit	Note
Nonlinearity		-0.3	±0.2	0.3	%FS	Note⑴
Hysteresis		-0.05	±0.03	0.05	%FS
Repeatability		-0.05	±0.03	0.05	%FS
Zero output		-2	±1	2	mV
Full scale span output	1.5mA, 10kPa 1.5mA,other ranges 10V, 10kPa 10V, other ranges	30 60 60 98	90 100	150 102	mV
Zero temp. coefficient	10kPa other ranges	-2 -1.5	±1.5 ±0.75	2 1.5	%FS	Note⑵
Span temp. coefficient		-1.5	±0.75	1.5	%FS	Note⑵
Thermal hysteresis		-0.075	±0.05	0.075	%FS	Note⑶
Long term stability		-0.3	±0.2	0.3	%FS/Year

Note:

(1) Calculate according to BFSL least square method.

(2) In the compensation temperature range 0 ℃ ~ 60 ℃and -10 ℃ ~ 70 ℃, and refer to 30 ℃

(3) After passing high and low temperature, return to the reference temperature.

Gauge pressure

10kPa～4MPa

Sealed gauge pressure or absolute pressure

＜25MPa

Sealed gauge pressure

≥25MPa

Gauge pressure

10kPa～4MPa

Sealed gauge pressure or absolute pressure

＜25MPa

Sealed gauge pressure

≥25MPa

Φ19mm Piezoresistive Silicon Pressure Sensor PC10P

Basic parameters
	Item	Condition	Min	Nominal	Max	Unit	Note
	Nonlinearity		-0.3	±0.2	0.3	%FS	Note⑴
	Hysteresis		-0.05	±0.03	0.05	%FS
	Repeatability		-0.05	±0.03	0.05	%FS
	Zero output		-2	±1	2	mV
	Full scale span output	1.5mA, 10kPa 1.5mA, other ranges 10V, 10kPa 10V, other ranges	30 60 60 98	90 100	150 102	mV
	Zero temp. coefficient	10kPa other ranges	-2 -1.5	±1.5 ±0.75	2 1.5	%FS	Note⑵
	Span temp. coefficient		-1.5	±0.75	1.5	%FS	Note⑵
	Thermal hysteresis		-0.075	±0.05	0.075	%FS	Note⑶
	Long term stability		-0.3	±0.2	0.3	%FS/Year

Note:

(1) Calculate according to BFSL least square method.

(2) In the compensation temperature range, refer to 30 ℃ for 0 ℃ ~ 60 and -10 ℃ ~ 70 ℃, and refer to 32.5 ℃ for -20 ℃ ~ 85 ℃.

(3) After passing high and low temperature, return to the reference temperature.

Structure and dimensions

In mm

Gauge pressure

10kPa～4MPa

Sealed gauge pressure or absolute pressure

＜25MPa

Sealed gauge pressure

≥25MPa

Φ19mm Piezoresistive Silicon Pressure Sensor PC10P

Electrical connection (in mm)

1. 6 pin (6p)

Φ19mm Piezoresistive Silicon Pressure Sensor PC10P

Pin Definition

3 Excitation+(IN+)

5 Excitation-(IN-)

2 Output+(OUT+)

4 Output-(OUT-)

1 Die-

6 Die-

Electrical connection (in mm) (cont.)

2. 4 wire (4w)

Wire color Definition

Red Excitation+(IN+)

Blue Excitation-(IN-)

Yellow Output+(OUT+)

White Output-(OUT-)

3. 5 wire (5w)

					Wire color Definition Red Excitation+(IN+) Blue Excitation-(IN-) Blue Excitation-(IN-) Yellow Output+(OUT+) White Output-(OUT-)
Pressure range selection
	Code	Pressure reference	Pressure range	Overpressure		Burst pressure	O-ring
	10k	G	0～10kPa	300％FS		600％FS	NBR
	20k	G	0～20kPa	300％FS		600％FS	NBR
	35k	G, A	0～35kPa	300％FS		600％FS	NBR
	70k	G	0～70kPa	300％FS		600％FS	NBR
	100k	G, A	0～100kPa	200％FS		500％FS	NBR
	160k	G, A	0～160kPa	200％FS		500％FS	NBR
	250k	G, A	0～250kPa	200％FS		500％FS	NBR
	400k	G, A	0～400kPa	200％FS		500％FS	NBR
	600k	G, A	0～600kPa	200％FS		500％FS	NBR
	1M	G, A	0～1MPa	200％FS		500％FS	NBR
	1.6M	G, A, S	0～1.6MPa	200％FS		500％FS	NBR
	2.5M	G, A, S	0～2.5MPa	200％FS		500％FS	NBR
	4M	S	0～4MPa	200％FS		400％FS	NBR
	6M	S	0～6MPa	200％FS		400％FS	Fluorine rubber
	10M	S	0～10MPa	200％FS		400％FS	Fluorine rubber
	16M	S	0～16MPa	200％FS		400％FS	Fluorine rubber
	25M	S	0～25MPa	150％FS		400％FS	Fluorine rubber
	40M	S	0～40MPa	150％FS		300％FS	Fluorine rubber
	60M	S	0～60MPa	150％FS		300％FS	Fluorine rubber
	100M	S	0～100MPa	150％FS		300％FS	Fluorine rubber
	(-100～0)k	Omitted	-100～0kPa	300kPa		600kPa	NBR
	(0～-100)k	Omitted	0～-100kPa	300kPa		600kPa	NBR
	Pressure range selection (cont.)
	Code	Pressure reference	Pressure range	Overpressure		Burst pressure	O-ring
	NP100k	Omitted	±100kPa	300kPa		600kPa	NBR
	(-100～160)k	Omitted	-100～160kPa	480kPa		900kPa	NBR
	(-100～250)k	Omitted	-100～250kPa	750kPa		1.25MPa	NBR
	(-100～400)k	Omitted	-100～400kPa	800kPa		2MPa	NBR
	(-100～600)k	Omitted	-100～600kPa	1.2MPa		3MPa	NBR
	(-0.1～1.0）M	Omitted	-0.1～1MPa	2MPa		5MPa	NBR
	(-0.1～1.6）M	Omitted	-0.1～1.6MPa	3MPa		9MPa	NBR
	(-0.1～2.5）M	Omitted	-0.1～2.5MPa	5MPa		12.5MPa	NBR

Note: G: Gauge pressure, A: Absolute pressure, S: Sealed gauge pressure
